PiPER

SKU: PiPER

PiPER is a lightweight robotic arm with six integrated joint motors for smooth, precise control. Weighing just 4.2kg, it easily handles a 1.5kg payload and is made from durable yet lightweight materials for versatile use across various environments

Request Quote

Please sign in to submit an inquiry or add to cart.

Product Details

Robotics, featuring lightweight design, high precision, and intelligence.

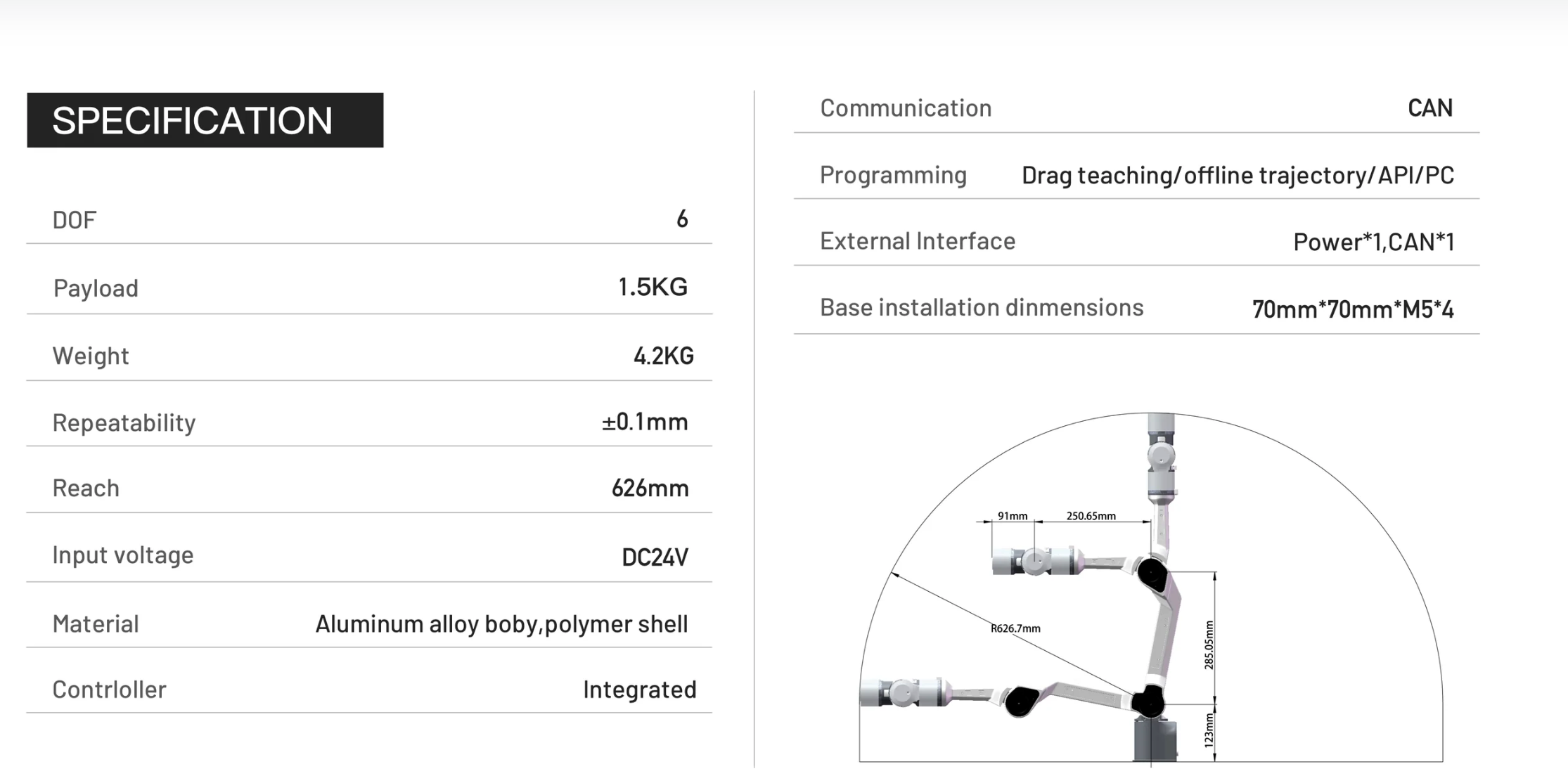

Basic Specifications
· Degrees of Freedom: 6-axis
· Payload: 1.5 kilograms
· Weight: 4.2 kilograms
· Repeatability: ±0.1 millimeters
· Reach: 626.75 millimeters
· Power Supply: DC 24 volts
· Power Consumption: Max ≤120 watts, Typical ≤40 watts
Structure & Design
· Body constructed with an aluminum alloy frame and resin shell,
offering robustness and strong interference resistance.
· Integrated controller design simplifies cabling and enhances overall
aesthetics and stability.
Performance & Motion

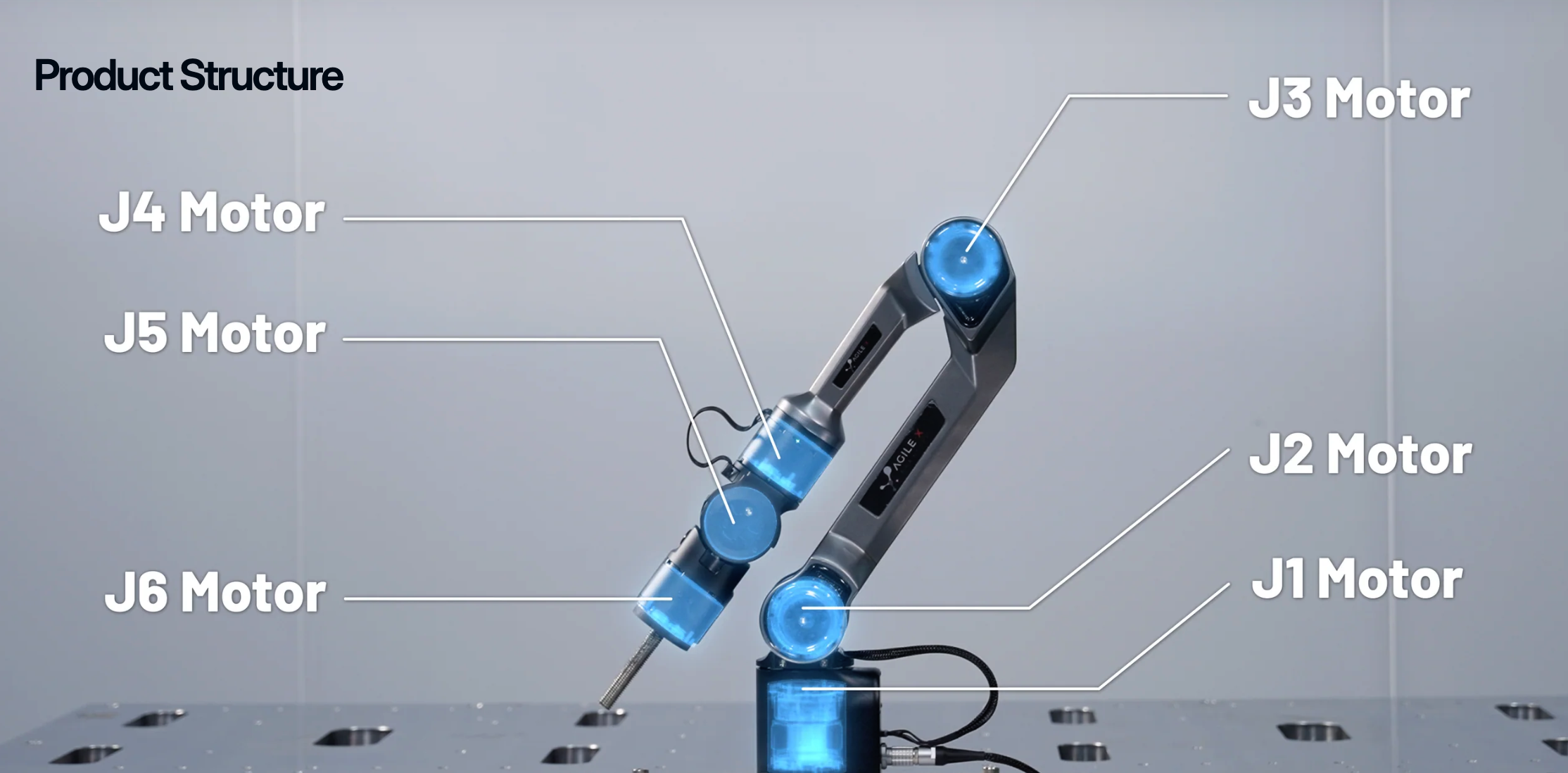

· Joint Motion Range:
J1: ±154 degrees
J2: 0 to 195 degrees
J3: -175 to 0 degrees
J4: -100 to 112 degrees
J5: ±75 degrees
J6: ±100 degrees
· Joint Maximum Speed:
J1/J3: 180 degrees/second
J2: 195 degrees/second
J4/J5/J6: 225 degrees/second
Intelligence & Control
· Communication: CAN bus
· Supports multiple control modes: Drag teaching, offline trajectory,
API programming, and PC software control.
· Compatible with Python development environment, ROS1, and
ROS2.
· URDF model provided, supports simulation based on Gazebo and
Isaac Sim.
Environmental Adaptability
· Operating Temperature: -20°C to 50°C
· Operating Humidity: 25% to 85% (non-condensing)
· Noise Level: < 60 dB
